A jacquard elastic band is an essential functional and visual component in modern apparel, premium underwear, high-performance sportswear, medical supports, luggage, and home textiles. Beyond providing necessary tension and structural support, a custom jacquard elastic band serves as a prominent branding surface that displays logos, texts, and intricate geometric patterns.
Achieving a balance between striking visual appeal, soft hand feel, stable stretch dynamics, and long-term durability requires a sophisticated manufacturing workflow. Below is our complete engineering process for designing and producing high-standard custom narrow fabrics that meet strict global quality standards.
1. Raw Material Selection & Strict QC Inspection
The foundation of any high-grade jacquard elastic band lies in the purity and tensile performance of its core inputs. We source premium spandex (Lycra), high-tenacity latex yarn, soft-touch Nylon 66, and durable polyester yarns exclusively from certified global suppliers.
Before entering the production line, all raw yarns undergo rigorous laboratory testing:
Elasticity & Tensile Recovery: Testing core elastomeric yarns under repeated tension to prevent permanent deformation.
Yarn Fineness & Denier Uniformity: Ensuring smooth feed rates through high-speed loom needles.
Color Fastness & Dye Uptake: Verifying that surface yarns resist fading, bleeding, or transferring dye onto adjacent garments during wear or washing.
By selecting specific yarn combinations, we tailor the band’s final hand feel, weight, and elasticity profile to match your exact application—whether you need ultra-soft waistbands for direct-to-skin underwear or heavy-duty elastic webbing for tactical outerwear and luggage.
2. Custom Pattern Engineering & Loom Programming
Custom graphic design is the defining feature of a custom jacquard elastic band. Our specialized textile design team collaborates directly with clients to refine brand logos, typography, graphic motifs, and Pantone color combinations.
Once artwork is finalized, textile technicians convert 2D graphics into precise machine code for computerized jacquard looms. This phase includes structural tension modeling:
Anti-Distortion Calibration: We adjust the warp-and-weft weave density to ensure that logos retain their correct aspect ratios and remain crisp even when the elastic is stretched across a user’s waist or body.
Color Contrast Optimization: We program multi-shuttle yarn sequences to achieve clean typography and sharp color boundaries without visible thread bleed-through.

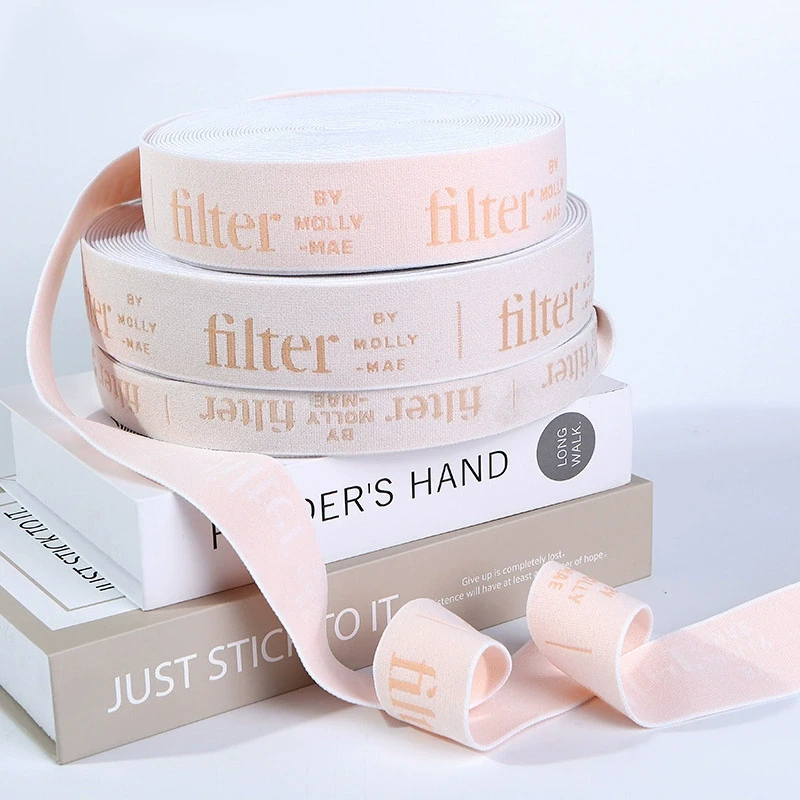

Custom Jacquard logo elastic tape with soft-touch finish and excellent stretch recovery. Perfect for activewear and underwear.
Detailed view of 38mm custom logo Jacquard elastic band with crisp edge stitching and durable elasticity.
Computer pattern design interface showing CAD weaving software alongside a physical sample display.
3. High-Precision Yarn Warping & Threading
Once digital programming is complete, raw yarns move to the preparation department. Automatic warping machines wind hundreds of individual surface yarns onto warp beams under electronically controlled tension. Maintaining uniform warp-beam tension across all spool positions is critical to preventing loose threads or uneven elastic recovery during high-speed weaving.
Next, experienced operators manually thread each warp yarn and elastic core through heddle wires and reed blades according to specific weave drafts. Precise threading prevents pattern misalignment, skipped stitches, and structural defects in the final woven trim.
4. Computerized High-Speed Jacquard Weaving
With prep work complete, high-speed computerized jacquard looms take over. Operating according to preset software programs, the jacquard head selectively lifts individual warp threads while high-elasticity spandex or latex cores are tightly bound inside the textile matrix.
Unlike surface-printed or heat-transferred designs, a woven jacquard elastic band features fully integrated 3D graphics that will never peel, crack, or wash away. Real-time digital monitors track loom speed, pick density, and yarn breakage in real time, guaranteeing consistent pattern resolution, weight, and elasticity across every meter of bulk production.
5. Thermal Setting, Finishing & Quality Control
After weaving, the elastic bands pass through continuous thermal finishing channels. Controlled heat treatment sets the fabric width, locks in dimensional stability, and neutralizes internal yarn stress to eliminate post-wash shrinkage. Every batch then undergoes a final 100% visual and physical inspection for color consistency, stretch resistance, and seam integrity before spooling and export packaging.
Choosing a Certified Manufacturing Partner
Selecting an experienced narrow-fabrics manufacturer ensures that your custom trims perform flawlessly on automated garment sewing lines and endure thousands of wear cycles.
To learn more about international standards for narrow fabric performance and physical textile testing, refer to Textile World performance fabric standards. If you are looking for tailor-made elastic solutions for your upcoming collection, explore our complete selection of custom jacquard elastic bands and contact our engineering team for custom samples today.
